Cutting

MPC 100 manual pineapple chunk cutter

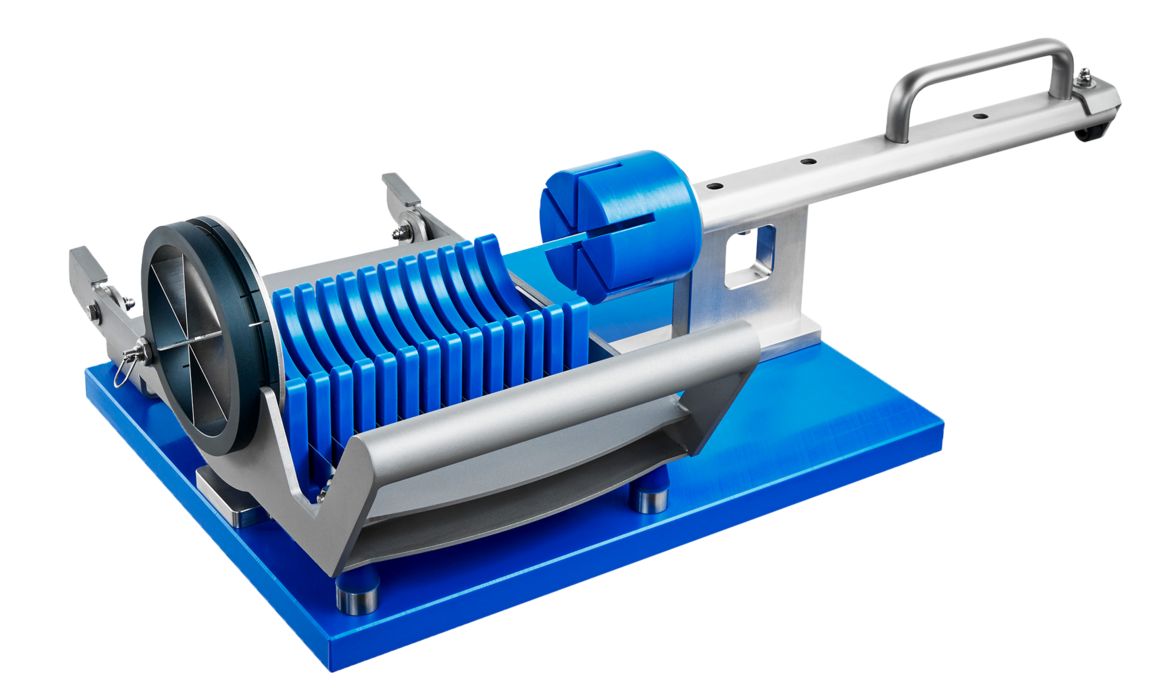

Manual pineapple chunk cutter MPC 100 for lightning-fast cutting of punched and cored pineapple cylinders into uniform pieces.

up to 720 pieces/h Max. capacity

Get information/offer

Manual pineapple chunk cutter MPC 100 from KRONEN for lightning-fast cutting of punched and cored pineapple cylinders into uniform pieces.

PDF Preview

Your benefits

Safe, simple operation and a lightning-fast cutting process
Two processing operations in one device
Maximum hygiene with easy and fast cleaning
For operation by just one person
Ideal for long, maintenance-free use due to the robust design

Product groups

Portrait

Bite-sized chunks of fresh pineapple – cut cleanly in a flash

With the practical tabletop model, fresh pineapple is cut into bite-sized chunks (dividing insert for 2, 4, 6 or 8 pieces). The MPC 100 can cut pineapples with a diameter between 85 and 100 mm and a length of up to 200 mm into slices and chunks in ‘one operation’. For this, the pineapple must have been topped and tailed, peeled and cored beforehand.
Manual operation of the robust device is extremely simple: The peeled and cored pineapple cylinder is placed in the device. When the lever is pulled down, the pineapple is cut into even slices that are 15 or 20 mm thick. In the next step, the pineapple slices are fed through a dividing insert with the help of a pusher. The result: perfectly cut pineapple chunks that are ideal for use in fruit salads or as pineapple snacks packed in portions.

The manual cutting process and cleaning are quick and easy to perform.

The MPC 100 is the ideal addition to the MMC 150 manual melon chunk cutter for fruit processors.

Illustration only, subject to technical changes.

Show more Show less

Get information/offer

After the Top & Tail cut and peeling, the pineapple chunk cutter MPC 100 is the perfect supplement for the final and perfect pineapple cut.

Even pineapple chunks cut with the KRONEN pineapple chunk cutter MPC 100.

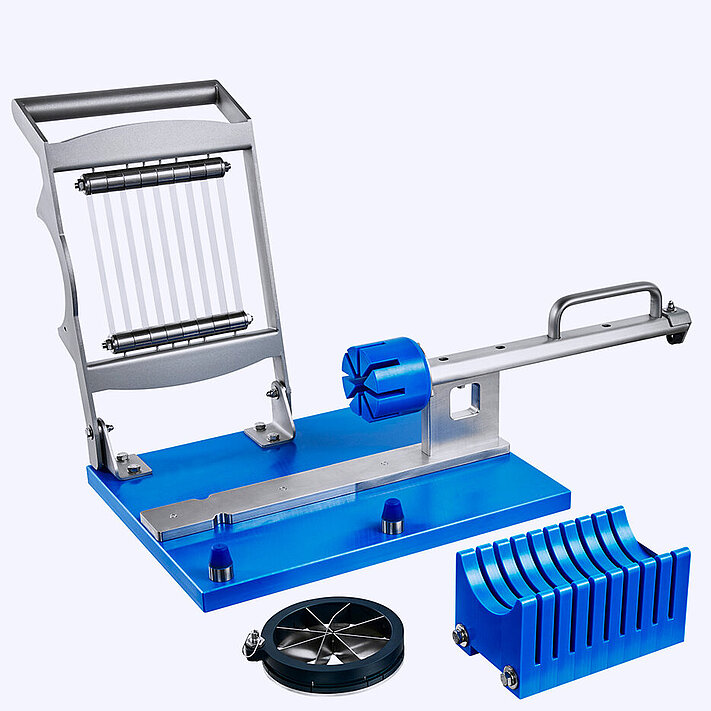

User-friendly cleaning of the MPC 100 — The MPC 100 allows easy and quick cleaning.

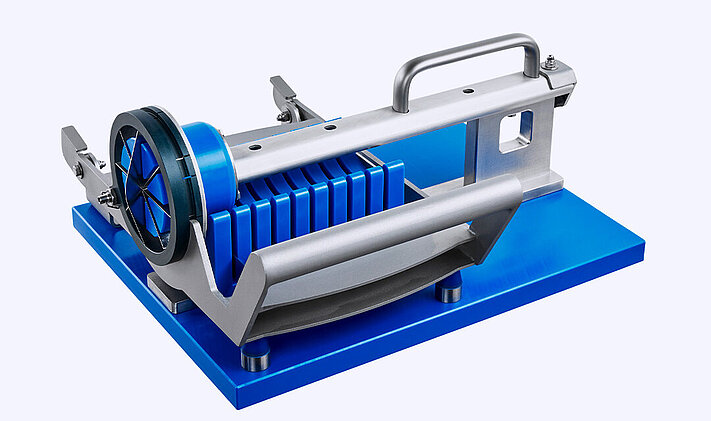

MPC 100 with a 20 mm cutting insert — In addition to the 15 mm cutting insert, the MPC 100 is also available with a 20 mm cutting insert.

A manual pineapple processing line with the MPC 100 pineapple chunk cutter

This line of compact tabletop equipment enables efficient manual processing of pineapples: from top and tail-tail cutting with the MAK manual pineapple top and tail cutter to grid cutting and de-stemming with the HGW manual grid cutter and right through to cutting uniform pineapple chunks with the MPC 100 manual pineapple chunk cutter.

Show more Show less

Benefits

The pineapple cylinder is placed into the pineapple chunk cutter MPC 100 and cut first into slices and then into segments.

Two processing operations in one device for efficient pineapple processing

The MPC 100 pineapple chunk cutter combines two processing steps in one device to produce pineapple chunks with optimal cutting quality. First, the pineapple cylinders are cut into slices (15 or 20 mm), which are then cut into 2, 4, 6 or 8 pieces.

Show more Show less

The processing line for pineapples comprises the manual pineapple top cutter, the grid cutter HGK, and the pineapple chunk cutter MPC 100.

Ideal tabletop device as an addition for complete pineapple processing

Depending on requirements and capacity, different KRONEN machines can be used for peeling and coring pineapples. The MPC 100 pineapple chunk cutter is the perfect addition for the final stage of processing and a perfect cut.

Show more Show less

The standard cutting insert of the KRONEN MPC 100 cuts the pineapple into six or eight chunks

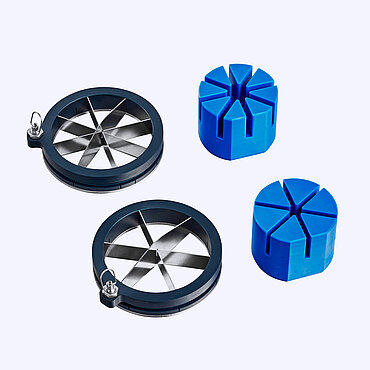

Various cutting inserts for cutting segments

The MPC 100 pineapple chunk cutter can be used to produce pineapple chunks of different sizes, for which several part inserts are available. The standard cutting thickness is 15 or 20 mm with a dividing insert that cuts the slices into 2, 4, 6 or 8 pieces.

Show more Show less

up to 720 pieces/h

Capacity

Manual

The capacity depends on factors such as the product.

Dimensions	LxWxH	485 x 390 x 230 mm
Dimensions	Weight	approx. 15 kg
Miscellaneous	Diameter of raw product	85–100 mm
	Cutting thickness	15 mm, 20 mm
	Height of raw product	max. 200 mm

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
