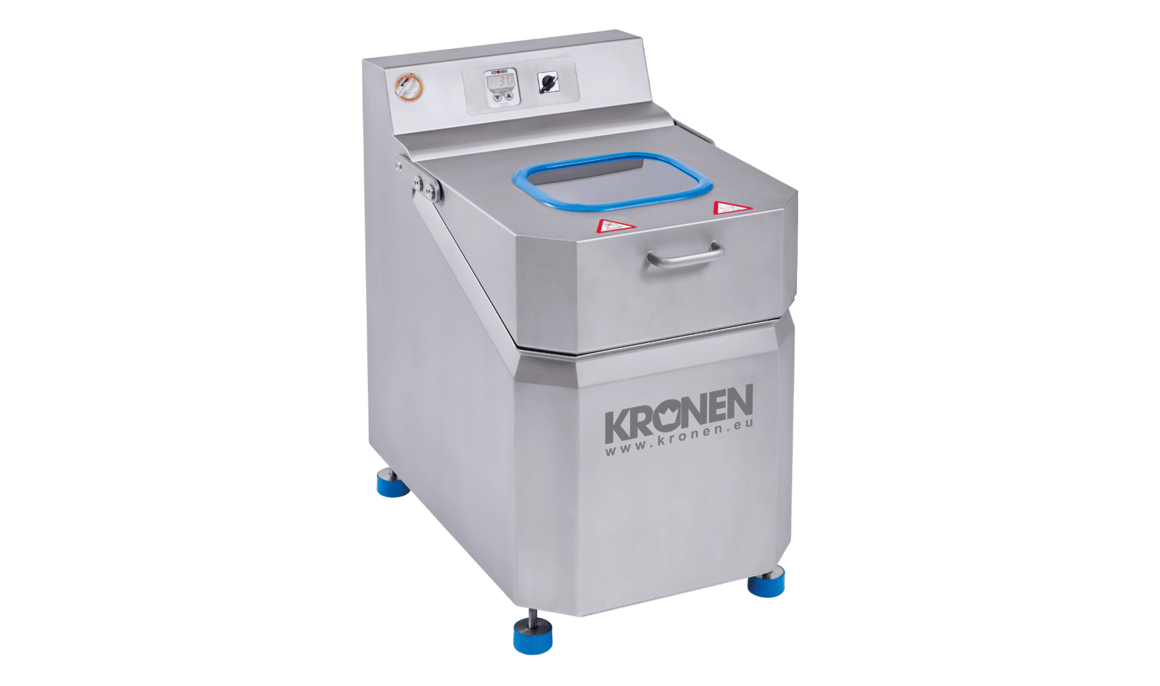

KS-100 PLUS vegetable and lettuce spin-dryer

As the top model of the KRONEN vegetable and lettuce spin-dryers, the KS-100 PLUS offers an ergonomic design, a counter-rotating centrifuge cycle and 99 program memory locations for the efficient drying of lettuce, vegetables, fruit and many more food products.

up to 1,250 kg/h   Max. capacity
Get information/offer
Spin-dryer for spinning cut vegetables, salad, fruit, caviar or tinned products for industrial food processing.
PDF Preview

Your benefits

  • Easy-to-clean spinning area without dirt traps thanks to hygienic design
  • Change of spinning direction ensures an optimal spinning result by loosening up the product
  • Ergonomic lift-in height
  • Optimal water drainage
  • Robust design and safe operation

Product groups

Portrait

Optimal spinning results and hygiene PLUS user-friendly operation

The KS-100 PLUS is used by customers worldwide to spin-dry a wide variety of products, from lettuce to cut vegetables and fruit through to canned products, pickled food products or caviar. The KS-100 PLUS vegetable and lettuce spin-dryer can be integrated into processing lines or used as a stand-alone machine. As a component of processing lines, it is positioned downstream of the washing process, after which the washed products are filled into the spin baskets and manually placed into the KS-100 PLUS.

The robust, open design enables

  • ergonomic operation due to the low lift-in height
  • optimal hygiene: no dirt traps due to screws etc. in the spinning area
  • easy water drainage for an optimal spin-drying result

The spin-dryer is suitable for processing lettuce, herbs, cut fruit and vegetables and many other products. For example, it also reduces the draining times of canned products such as mushrooms and pickled vegetables or even defrosted products. Other food products such as prawns, caviar (substitute) or even sesame seeds can also be dewatered/dried with the spin-dryer. Mesh inserts for the spin baskets are optionally available for fine-particle products. Depending on the product, the machine achieves high capacities and a low residual moisture in the products.

Show more Show less
Get information/offer

Videos

KS-100 PLUS – gentle and effective spinning and drying of salads and vegetables
The KS-100 PLUS, KRONEN’s top-selling spin-dryer for vegetables and salads, is a field-tested machine with hundreds of models in operation worldwide. It now features a new design.
Show more Show less

Benefits

The open design makes the spin-drying area easily accessible for cleaning

Easy and quick cleaning due to an open, hygienic design

The open design makes the centrifuge area easy to access for quick cleaning and maintenance work. In addition, there are no dirt traps caused by screws in the spin area, and the lid locking mechanism is also located in the rear machine housing.

Show more Show less
KRONEN benefits

Optimal spin-drying result thanks to water drainage and a changing rotation direction

The counter-rotating centrifuge cycle, in which the direction of rotation changes automatically after half of the spinning time, ensures an optimal result by loosening up the product. The pin-type pick-up in the rotating basket efficiently accelerates and decelerates the basket filled with the product. The sloping floor and the wide drain pipe with a diameter of 100 mm ensure ideal water drainage.

Show more Show less
KRONEN benefits

99 memory locations for adjustment to suit different products

The spinning speed and duration can be adjusted to suit the specific product and stored in the 99 freely programmable memory locations. This means that a wide variety of products can be spun dry and dewatered gently and efficiently.

Show more Show less
KRONEN benefits

User-friendly even when frequent product changes are necessary

The ergonomic lift-in height and the lid locking mechanism, which prevents the centrifuge from being opened during the spin cycle, make the spin-dryers particularly user-friendly. The KS-100 PLUS is suitable for frequent product changes due to the quick cleaning function and the program memory locations. The powerful and low-noise motor ensures low wear and a long service life. All in all, the machine is very easy to maintain.

Show more Show less

Accessories

Easily stackable plastic baskets which are placed into the spin-dryer
Matching plastic baskets

The lightweight, stackable plastic baskets with carrying handles are filled with the wet (washed) product and inserted into the rotating basket of the spin-dryer.

Show more Show less
The mesh insert can be placed into the basket for the processing of small products
Mesh insert for fine products

With the help of the mesh insert for the plastic baskets, even fine-particle and sensitive products such as herbs or seeds can be spun dry without any problems. The fine nylon filter keeps even very small products in the basket.

Show more Show less
The basket carousel serves as a link between the washing machines and the vegetable and salad spin-dryers
Basket carousel as an efficient link

The basket carousel is a practical link between the KRONEN washing machines and the KRONEN vegetable and lettuce spin-dryers. It ensures a continuous workflow, simplifies the change of baskets and catches possible product overflows in the stainless steel container.

Show more Show less
The basket slide connects a washing machine with the vegetable and salad spin-dryer
Basket slide for transport from the washing machine to the spin-dryer

The basket slide is another way to connect a KRONEN washing machine with the vegetable and lettuce spin-dryer. It is available in a straight or angled configuration.

Show more Show less
KRONEN accessories
Stainless steel basket insert

A stainless steel basket insert is also available as an alternative to the mesh insert.

Show more Show less
up to 1,250 kg/h
Capacity
Batch
Loading type

The capacity depends on factors such as the product.

Electrical power Power 0.8 kW
Voltage 230 V
Frequency 50 Hz
Dimensions LxWxH 954 x 644 x 985 mm
Weight 160 kg
Miscellaneous Spin speed 325–1050 rpm
Basket volumes 44 l
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
PDF Preview
pdf
Download
Get information/offer
