Disinfection, Washing, Mixing

GEWA 3800 ECO washing machine with vibration or belt outfeed

Cost-reduced ECO model: a universal washing machine for the continuous pre-washing, washing, disinfection and treatment of both cut and whole lettuce, vegetables, herbs and fruit, among others.

1,800 kg/h Max. capacity

Get information/offer

Cost-effective, efficient and gentle washing with the washing machine GEWA 3800 ECO from KRONEN: cut and whole products (salad, vegetables, herbs, fruit etc.) up to 1,000 kg/h.

PDF Preview

Your benefits

Cost-reduced ECO model – with the effective and gentle HELICAL washing system
The HELICAL washing system makes the machine versatile and space-saving
Reduced water consumption with perfect washing results
Optimal separation of foreign objects, for example sand, stones and insects
Continuous washing process – with automatic filling, no operating personnel required
Washing, disinfection, mixing and rinsing possible in just one machine

Product groups

Portrait

Cost-reduced ECO model: wash up to 1,800 kilograms per hour gently and thoroughly

The GEWA 3800 ECO is used for pre-washing, washing, disinfecting, mixing, treating and rinsing lettuce, vegetables and fruit. It can be used flexibly and is usually positioned downstream of a cutting machine between the low-care and high-care area.

The wash tank is filled either automatically via an infeed belt or manually. Both floating and sinking products are conveyed through the wash tank by the HELICAL washing system in a spiral movement. The flow rate and movement of the water in the wash tank can be adjusted to suit different products. At the end of the wash tank, the product and the water are transported to a vibration or belt outfeed by means of an overflow and sprayed with a fresh water shower. The water flows through a strainer into the pump tank, from which it is pumped back into the wash tank and used again.

Versatile application options:

Lettuce (e.g. baby leaf, iceberg): cut and whole leaves
Vegetables: cut and whole
Herbs (e.g. parsley, chives): loose and in bunches
Fruit (e.g. pineapple, melon): cut and whole
Other leafy products (e.g. spinach), tuber products, pulses and mushrooms, as well as seaweed or kelp

As a result, the GEWA ensures an undamaged, optionally cleaned product that, if necessary, has been disinfected with a washing additive. In addition, the product can be efficiently mixed (e.g. mixed salads) and cooled down by the washing process. Small particles are also sorted out in the washing machine with a vibration outfeed.

Show more Show less

Get information/offer

Fresh water spray of the GEWA washing machines from KRONEN rinses and cleans the product during discharge out of the machine — A fresh water spray above the discharge belt sprays any residues of the disinfecting agent off the washed product or represents an additional rinsing step with fresh water – at the same time, the washing tank is thus constantly refilled. (Fig. GEWA XL)

Effective, gentle and economical washing with KRONEN GEWA washing machines — The GEWA ensures an undamaged, optionally cleaned product that, if necessary, has been disinfected with a washing additive. (Fig. GEWA 4000B PLUS)

GEWA3800VECO cauliflower and broccoli wash

Gentle washing of cauliflower and broccoli with the GEWA 3800 V ECO washing machine. More information: http://www.kronen.eu/product.php?IDProduct=6681

Show more Show less

GEWA3800VECO dried tomato with air system

Sun-dried tomatoes are washed clean and thoroughly with the KRONEN washing machine GEWA 3800 V ECO (with air system).

Show more Show less

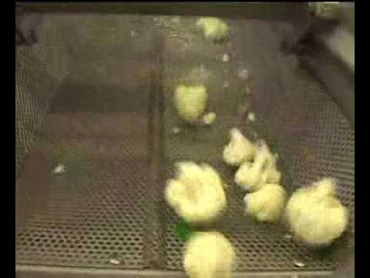

GEWA 3800 V ECO: wash cauliflower + broccoli

Cauliflower and broccoli are washed cleanly and gently with the GEWA 3800 V ECO washing machine. More information at: http://www.kronen.eu/product.php?IDProduct=6681

Show more Show less

Benefits

All GEWA washing machines from KRONEN are available with vibration or belt discharge – which discharge is chosen depends on the product and user’s requirements

Vibration or belt outfeed

The washing machines are available with vibration or belt outfeed. The chosen outfeed depends on the specific requirements. The vibration outfeed ensures preliminary dewatering of the product, sorts out small particles and is easier to clean. Filter strainers with hole sizes of 2, 5, 8 or 10 mm, for example, are available, enabling product-specific adaptations. In addition to the standard version, a version with an outfeed extended by 500 mm (GEWA PLUS) or 400 mm (GEWA ECO) is available. A belt outfeed may enable a higher capacity and is more suitable for individual products. What’s more, the machine does not necessarily need to be raised in case of a wash cascade function. (Fig. GEWA 3800V PLUS)

Show more Show less

The GEWA HELICAL washing system from KRONEN guarantees effective, gentle washing and reduces water consumption and space requirement

Highly effective, gentle HELICAL washing system

KRONEN’s HELICAL washing system ensures that the product travels along a spiral-shaped route in the wash tank that is up to ten times longer than the wash tank. Due to the ideal distribution, the product is loosened up and constantly rinsed completely during the cleaning process. Products are therefore washed thoroughly and gently, water consumption is considerably reduced, and the machine is ideal for a wide range of applications.

Show more Show less

Sand trap in the GEWA washing machines from KRONEN for loosened dirt and sand supports the perfect washing result

Sand trap sedimentation unit

The sand trap integrated into the wash tank separates the loosened heavy dirt (e.g. small stones) and sand from the product flow. Dirt and sand settle in the sand trap at the bottom of the wash tank and are not discharged from the wash tank with the product. (Fig. GEWA 3800 PLUS)

Show more Show less

GEWA XL washing machine from KRONEN with optimum design for high standards of hygiene as well as simple and fast cleaning and maintenance – e.g. through an optional clean-in-place system (CIP)

Ideal accessibility for cleaning and maintenance

All areas are easily accessible for easy cleaning and maintenance. All pipes, the pump casing, the wash and pump tanks and the covers and switch cabinet are made from AISI 304 stainless steel. All in all, the GEWA washing machines impress users with their optimal hygienic design. In the GEWA PLUS models with vibration outfeed, there are no screws whatsoever in the product area. (Fig. GEWA XL)

Show more Show less

With its modular, compact design, the GEWA 2600 ECO from KRONEN allows great flexibility and adaptation to individual requirements

Compact and modular design

Thanks to the HELICAL washing system, GEWA washing machines are particularly compact. They also have a modular design, which enables the flexible adaptation of the machine to the requirements in production operations. For example, it is possible to retrofit the air system or other options that can be quickly and easily installed as a kit.

Show more Show less

Insect and fine particle discharge of the GEWA washing machine from KRONEN – ideally accessible and thus easy to clean

Insect and fine particle removal system

The insect and fine particle system is available in two versions: firstly as a removable, static basket insert for cut, less sensitive products and secondly as a rotary insect removal unit with a drum for more sensitive products and whole leaves. The insect drum can be easily swiveled out of the wash tank, for example for cleaning. It also has an open design for easy access. At the same time, operational safety is guaranteed. (Fig. GEWA 3800 PLUS)

Show more Show less

Air system

The KRONEN air system enables the combination of the benefits of the HELICAL washing system with those of the flotation system. By means of a blower, air is conveyed through a pipe system with a large number of perforations. This pipe system generates air bubbles in the wash tank. Especially in the case of sensitive products such as whole lettuce leaves or difficult products such as curly-leaf parsley or lollo rosso lettuce leaves, the combination of reduced water rotation and the air bubbles provides an optimal result.

Show more Show less

Dwell time function of the GEWA washing machines from KRONEN optimizes hygiene and shelf life thanks to the freely adjustable contact time

Retention time function

The retention time is realized by a retaining flap, which automatically controls how long the products remain in the wash tank. This enables the freely adjustable contact time of the products with the water to be guaranteed when using washing additives. This step forms a fundamental basis for hygiene in further processing. (Fig. GEWA 4000)

Show more Show less

Water recycling system

The KRONEN Water Recycling System (WRS) is used in washing lines comprised of at least two GEWA or HEWA washing machines. Excess water from the second washing machine is returned to the first washing machine, considerably reducing the overall water consumption. The system makes use of the fact that the first washing machine generally carries the higher dirt and germ load. The water from the second washing machine, which is cleaner, is therefore used to refresh the water cycle.

Show more Show less

KRONEN SMART Factory, SMART Machines: In future, wherever production managers, technicians or foremen might be, they can check the production status of the machine or line on a laptop or mobile end device at any time

SMART Solutions for intelligent, networked production

KRONEN uses its SMART option to provide communication-enabled machines and processing lines. Wherever production managers, technicians or foremen might be, they can use these solutions to check the production status of a machine or line on their laptop or mobile device at any time. The collected data can be used to make production processes even more transparent and efficient, for example with regard to productivity, flexibility, quality and safety. Do you have special requirements? We can develop an individual, tailor-made solution for you.

SMART Solutions

Show more Show less

100 - 1,800 kg/h

Capacity

Wet disinfection

The capacity depends on factors such as the product.

Electrical power	Power	5.7 kW / 5.5 kW (V outfeed / B outfeed)
	Voltage	3~400 V N/PE
	Frequency	50 Hz
Water	Fresh water connection	2 3/4 inch (GEKA coupling)
	Water drainage	2 x 2"
	Total volumes	785 l
Dimensions	LxWxH	3807 x 991 x 1500 mm / 4007 x 1246 x 1500 mm (V outfeed / B outfeed)
	Weight	583 kg / 465 kg (V outfeed / B outfeed)
	Infeed/placement height	1103 mm
	Outfeed/delivery height	771 mm/707 mm (V outfeed / B outfeed)

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
