GEWA 4000 PLUS washing machine with vibration or belt outfeed

A universal washing machine for high capacities: for the continuous pre-washing, washing, disinfection and treatment of both cut and whole lettuce, vegetables, herbs and fruit, among others

4,000 kg/h Max. capacity

Get information/offer

The washing machine GEWA 4000 PLUS from KRONEN for the effective, gentle and economic washing of cut and whole products (salad, vegetables, herbs, fruit etc.) – large capacities up to 4 t/h.

PDF Preview

Your benefits

Effective and gentle washing due to the HELICAL washing system
The HELICAL washing system makes the machine versatile and space-saving
Reduced water consumption with perfect washing results
Optimal separation of foreign objects, for example sand, stones and insects
Continuous washing process – with automatic filling, no operating personnel required
Washing, disinfection, mixing and rinsing possible in just one machine

Product groups

Portrait

Effective, gentle and economical washing of up to 4,000 kg per hour

The GEWA 4000 PLUS is used for pre-washing, washing, disinfecting, mixing, treating and rinsing salad leaves, vegetables and fruit. It can be used flexibly and is usually positioned downstream of a cutting machine between the low-care and high-care area.

The wash tank is filled either automatically via an infeed belt or manually. Both floating and sinking products are conveyed through the wash tank by the HELICAL washing system in a spiral motion. The flow rate and movement of the water in the wash tank can be adjusted to suit different products. At the end of the wash tank, the product and with the water are transported to a vibration or belt outfeed by means of an overflow and sprayed with a fresh water shower. The water flows through a strainer into the pump tank, from which it is pumped back into the wash tank and used again.

Versatile application options:

Lettuce (e.g. baby leaf, iceberg): cut and whole leaves
Vegetables: cut and whole
Herbs (e.g. parsley, chives): loose and in bunches
Fruit (e.g. pineapple, melon): cut and whole
Other leafy products (e.g. spinach), tuber products, pulses and mushrooms, as well as seaweed or kelp

As a result, the GEWA ensures an undamaged, optionally cleaned product that, if necessary, has been disinfected with a washing additive. In addition, the product can be efficiently mixed (e.g. mixed salads) and cooled down by the washing process.

Show more Show less

Get information/offer

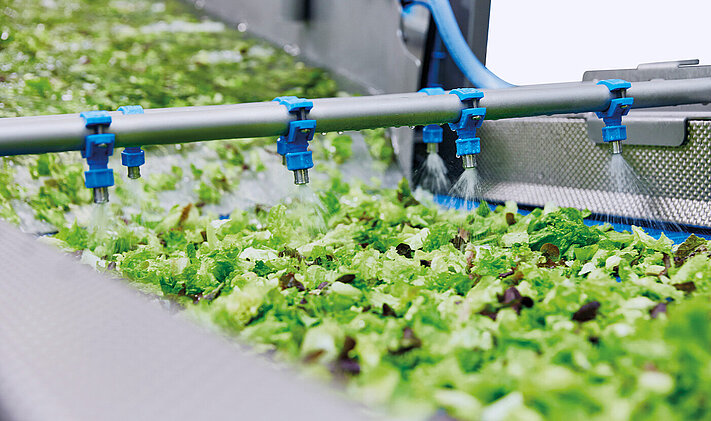

Fresh water spray of the GEWA washing machines from KRONEN rinses and cleans the product during discharge out of the machine — A fresh water spray above the discharge belt sprays any residues of the disinfecting agent off the washed product or represents an additional rinsing step with fresh water – at the same time, the washing tank is thus constantly refilled. (Fig. GEWA 4000)

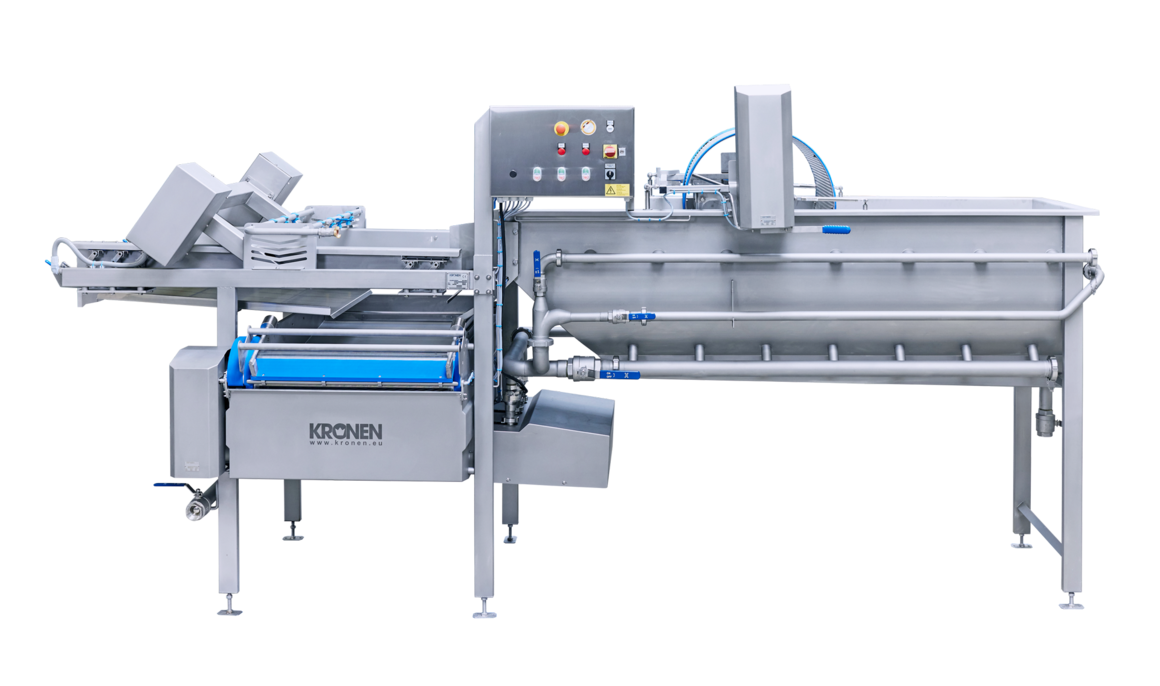

Effective, gentle and economical washing with KRONEN GEWA washing machines — The GEWA ensures an undamaged, optionally cleaned product that, if necessary, has been disinfected with a washing additive. (Fig. GEWA 4000B PLUS)

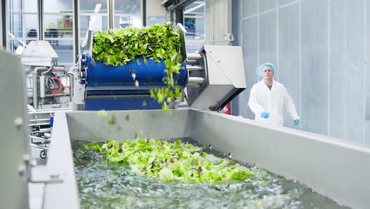

Washing machine GEWA 4000 PLUS by KRONEN with conveyor belt discharge and special equipment."

The universal washing machine is suitable for large capacities, designed for continuous pre-washing, washing, disinfecting, and treating, among others, salad, vegetables, herbs, and fruits, both cut and whole products. The system depicted in the video is equipped with a conveyor belt discharge and options such as a Water Management System. Max. Capacity: 4 tons/h.

Show more Show less

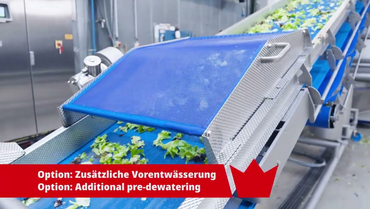

Processing line for lettuce and vegetables from KRONEN - for up to 4 t/h

The processing line is used to wash and dry lettuce and vegetables. The innovative K850 drying system with optional volume control is integrated: the fully automatic, continuously operating drying system sets new standards in terms of hygiene. In addition, two HELICAL GEWA 4000B PLUS washing machines with special equipment - including a water management system - are included. More: www.kronen.eu

Show more Show less

Benefits

All GEWA washing machines from KRONEN are available with vibration or belt discharge – which discharge is chosen depends on the product and user’s requirements

Vibration or belt outfeed

The washing machines are available with vibration or belt outfeed. The chosen outfeed depends on the specific requirements. The vibration outfeed ensures preliminary dewatering of the product, sorts out small particles and is easier to clean. Filter strainers with hole sizes of 2, 5, 8 or 10 mm, for example, are available, enabling product-specific adaptations. In addition to the standard version, a version with an outfeed extended by 500 mm (GEWA PLUS) or 400 mm (GEWA ECO) is available. A belt outfeed may enable a higher capacity and is more suitable for individual products. What’s more, the machine does not necessarily need to be raised in case of a wash cascade function. (Fig. GEWA 3800V PLUS)

Show more Show less

The GEWA HELICAL washing system from KRONEN guarantees effective, gentle washing and reduces water consumption and space requirement

Highly effective, gentle HELICAL washing system

KRONEN’s HELICAL washing system ensures that the product travels along a spiral-shaped route in the wash tank that is up to ten times longer than the wash tank. Due to the ideal distribution, the product is loosened up and constantly rinsed completely during the cleaning process. Products are therefore washed thoroughly and gently, water consumption is considerably reduced, and the machine is ideal for a wide range of applications.

Show more Show less

Sand trap in the GEWA washing machines from KRONEN for loosened dirt and sand supports the perfect washing result

Sand trap sedimentation unit

The sand trap integrated into the wash tank separates the loosened heavy dirt (e.g. small stones) and sand from the product flow. Dirt and sand settle in the sand trap at the bottom of the wash tank and are not discharged from the wash tank with the product. (Fig. GEWA 3800 PLUS)

Show more Show less

GEWA XL washing machine from KRONEN with optimum design for high standards of hygiene as well as simple and fast cleaning and maintenance – e.g. through an optional clean-in-place system (CIP)

Ideal accessibility for cleaning and maintenance

All areas are easily accessible for easy cleaning and maintenance. All pipes, the pump casing, the wash and pump tanks and the covers and switch cabinet are made from AISI 304 stainless steel. All in all, the GEWA washing machines impress users with their optimal hygienic design. In the GEWA PLUS models with vibration outfeed, there are no screws whatsoever in the product area. (Fig. GEWA XL)

Show more Show less

With its modular, compact design, the GEWA 3800 PLUS from KRONEN allows great flexibility and adaptation to individual requirements

Compact and modular design

Thanks to the HELICAL washing system, GEWA washing machines are particularly compact. They also have a modular design, which enables the flexible adaptation of the machine to the requirements in production operations. For example, it is possible to retrofit the air system or other options that can be quickly and easily installed as a kit.

Show more Show less

Insect and fine particle discharge of the GEWA washing machine from KRONEN – ideally accessible and thus easy to clean

Insect and fine particle removal system

The insect and fine particle system is available in two versions: firstly as a removable, static basket insert for cut, less sensitive products and secondly as a rotary insect removal unit with a drum for more sensitive products and whole leaves. The insect drum can be easily swiveled out of the wash tank, for example for cleaning. It also has an open design for easy access. At the same time, operational safety is guaranteed. (Fig. GEWA 3800 PLUS)

Show more Show less

Lateral fine particle discharge on the GEWA KRONEN machine protects the pumps and makes continual work possible, even with products that foam and contain many small parts

Lateral fine particle removal drum

The lateral fine particle removal drum with a slotted strainer opening of 0.5 mm filters particles out of the circulating wash water. It enables continuous operation without blocking the filter above the pump tank and protects the pumps. This is particularly important for products that foam and contain many small particles. (Fig. GEWA AF)

Show more Show less

Air system

The KRONEN air system enables the combination of the benefits of the HELICAL washing system with those of the flotation system. By means of a blower, air is conveyed through a pipe system with a large number of perforations. This pipe system generates air bubbles in the wash tank. Especially in the case of sensitive products such as whole lettuce leaves or difficult products such as curly-leaf parsley or lollo rosso lettuce leaves, the combination of reduced water rotation and the air bubbles provides an optimal result.

Show more Show less

Sand trap funnel for GEWA PLUS washing machines from KRONEN especially designed for washing very sandy products such as lamb’s lettuce or shoots

Sand trap funnel for products with a high sand content

A sand trap funnel for GEWA PLUS or HEWA washing machines is recommended when washing heavily soiled products (e.g. lamb's lettuce). It can accommodate 49 liters of the sand-water mixture and can be emptied manually by means of a ball valve or regulated by an automatic flow control. In the second case, the parameters (e.g. opening cycle and duration) can be set so that automatic regular emptying takes place, in combination with the water management system. (Fig. GEWA 4000)

Show more Show less

Dwell time function of the GEWA washing machines from KRONEN optimizes hygiene and shelf life thanks to the freely adjustable contact time

Retention time function

The retention time is realized by a retaining flap, which automatically controls how long the products remain in the wash tank. This enables the freely adjustable contact time of the products with the water to be guaranteed when using washing additives. This step forms a fundamental basis for hygiene in further processing. (Fig. GEWA 4000)

Show more Show less

The Water Management System of the GEWA PLUS washing machines from KRONEN makes the central filling and draining of the washing tank possible

Water management system (WMS)

The WMS for the GEWA PLUS or HEWA washing machines enables centrally controlled filling and emptying of the washing machines. During operation, an additional level sensor automatically regulates the water level in the washing machine. If the water level drops too low, the pneumatic infeed valves are automatically opened and fresh water is provided. The standard system is comprised of two valves for filling and two for emptying the machine, as well as the necessary pipe system. Other versions are also available on request. The WMS is operated via the switch cabinet. (Fig. GEWA 4000)

Show more Show less

Water recycling system

The KRONEN Water Recycling System (WRS) is used in washing lines comprised of at least two GEWA or HEWA washing machines. Excess water from the second washing machine is returned to the first washing machine, considerably reducing the overall water consumption. The system makes use of the fact that the first washing machine generally carries the higher dirt and germ load. The water from the second washing machine, which is cleaner, is therefore used to refresh the water cycle.

Show more Show less

Cleaning trolley for the lateral fine particle removal drum

The trolley makes it easier to clean GEWA and HEWA washing machines. The lateral fine particle removal drum can be taken out of the machine and placed on the mobile trolley, on which it is easy to transport and clean.

Show more Show less

KRONEN SMART Factory, SMART Machines: In future, wherever production managers, technicians or foremen might be, they can check the production status of the machine or line on a laptop or mobile end device at any time

SMART Solutions for intelligent, networked production

KRONEN uses its SMART option to provide communication-enabled machines and processing lines. Wherever production managers, technicians or foremen might be, they can use these solutions to check the production status of a machine or line on their laptop or mobile device at any time. The collected data can be used to make production processes even more transparent and efficient, for example with regard to productivity, flexibility, quality and safety. Do you have special requirements? We can develop an individual, tailor-made solution for you.

SMART Solutions

Show more Show less

500 - 4,000 kg/h

Capacity

Wet disinfection

The capacity depends on factors such as the product.

Electrical power	Power	8.4 kW / 8.6 kW (V outfeed / B outfeed)
	Voltage	3~400 V N/PE
	Frequency	50 Hz
Water	Fresh water connection	2 x 3/4 inch (GEKA coupling)
	Water drainage	2 x 2"
	Total volumes	1340 l
Dimensions	LxWxH	4070 x 1885 x 1718 mm / 4516 x 1885 x 1750 mm (V outfeed / B outfeed)
	Weight	650 kg / 680 kg (V outfeed / B outfeed)
	Infeed/placement height	1293 mm
	Outfeed/delivery height	958 mm / 783 mm (V outfeed / B outfeed)

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
