Mixing, Conveying, Weighing

Batch Weighing System

An automated weighing system for putting together precise salad or vegetable blends based on a recipe. The mixtures are weighed in batches but continuously conveyed along the line to optimize processing efficiency.

10-100 kg / 30-300 kg per batch (small / large system)   Max. capacity
Get information/offer
The Batch Weighing System from the KRONEN partner iWEIGH is easy to clean.
PDF Preview

Your benefits

  • Precise mixing, fully recipe-based
  • Precise production control with up to 3% precision
  • Optimizes the efficiency of the processing line and prevents the line from being overloaded
  • Durability, easy cleaning and simple maintenance thanks to a robust, open and hygienic design
  • User-friendly and safe operation thanks to touch-panel visualization and operation

Product groups

Portrait

A precise, automated batch weighing system for salad mixtures and vegetable mixtures – for continuous line processing

The automated Batch Weighing System from the KRONEN partner iWEIGH allows products containing cut vegetables, salad leaves, baby leaf lettuce and leafy vegetables to be mixed in batches according to a recipe before being conveyed to the next processing or packaging line.

The batches are continuously fed into the line to optimize its efficiency and prevent overfilling. The system weighs salad and vegetable mixtures up to an accuracy of 200 g.

The weighing system comprises a recipe weighing conveyor and an inclined conveyor batch to flow, which feeds the product into the line.

A simple and user-friendly process

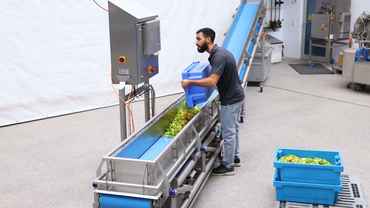

To use the recipe weighing system, the operator fills the weighing conveyor, which performs a dosing scale function, with the ingredients according to the clear instructions displayed on the touch panel. The recipe weighing belt is equipped with a tapping frame to ensure that crates of raw materials are fully emptied. Once the desired weight of the first ingredient has been added to the belt, the operator can confirm this using the foot bar, and the system then automatically moves on to the next ingredient. This process continues until the batch is complete.

The salad blend or vegetable blend is then automatically discharged onto the next belt so that the batch is distributed along the entire length of the belt. Once the discharge process is complete, the inclined conveyor batch to flow slows down in order to convey the batch into the system in a continuous flow, leaving the recipe weighing conveyor ready to receive the next batch.

A wide variety of flexible applications

The Batch Weighing System enables users to weigh up to 12 product components (cut vegetables, cut salad, baby leaf lettuce and leafy vegetables) according to pre-specified recipes. Up to 50 individual recipe mixtures can be stored using the touch panel, thus always ensuring up-to-date recipes and mixing ratios of a consistently high quality.

The robust system is designed especially for use in automated processing lines and can be optimally integrated into various process flows.

Show more Show less
Get information/offer

Benefits

The Batch Weighing System from the KRONEN partner iWEIGH ensures continuous, automated filling of the processing line.

Continuous, automated filling of the processing line

The mixed products are distributed along the entire length of the inclined conveyor batch to flow, which subsequently slows down. This allows the salad and vegetable mixtures to be fed into the line continuously, which in turn guarantees maximum efficiency and prevents the line from being overloaded.

Show more Show less
The Batch Weighing System from the KRONEN partner iWEIGH enables the precise composition of recipe-based salad or vegetable mixtures in continuous processing lines.

Optimal maintenance and easy cleaning

The open and hygienic stainless steel design and the rods that hold up the belt enable easy cleaning.

Show more Show less
KRONEN benefits

Flexible designs can be ordered individually

Weighing belt systems can be optimally adapted to the individual specifications of different processing lines and also enable components to be added at different points during processing.

Show more Show less

Accessories

KRONEN SMART Factory, SMART Machines: In future, wherever production managers, technicians or foremen might be, they can check the production status of the machine or line on a laptop or mobile end device at any time
SMART Solutions for intelligent, networked production

KRONEN uses its SMART option to provide communication-enabled machines and processing lines. Wherever production managers, technicians or foremen might be, they can use these solutions to check the production status of a machine or line on their laptop or mobile device at any time. The collected data can be used to make production processes even more transparent and efficient, for example with regard to productivity, flexibility, quality and safety. Do you have special requirements? We can develop an individual, tailor-made solution for you.

SMART Solutions

Show more Show less
10-100 kg / 30-300 kg per batch (small / large system)
Capacity
Semi-automatic
Weighing belt
Special
Inclined conveyor belt

The capacity depends on factors such as the product.

Electrical power Power 1.5 kW
Voltage 400 V N/PE
Frequency 50 Hz
Dimensions LxWxH 3085 x 965 x 2005 mm (small system) or 4632 x 1217 x 2005 mm (large system) – others available on request
Weight 200 kg (small system) or 400 kg (large system)
Infeed/placement height 800 mm
Outfeed/delivery height 400 mm
Belt width 400 mm (small system) or 600 mm (large system)
Miscellaneous Usable volume 200 l (small system) or 600 l (large system) – others available on request
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
PDF Preview
pdf
Download
Get information/offer

This might also interest you

Mixing, Conveying, Weighing

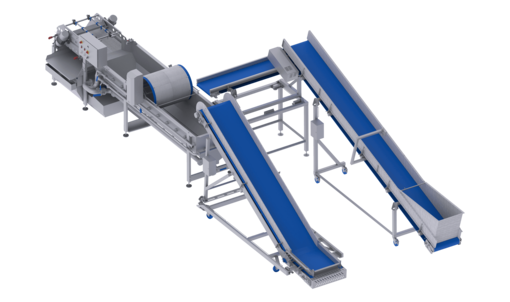

Automatic weighing belt system
Due to its dynamic weighing belts, the system can control the production of mixed products such as mixed lettuce and salads, vegetables and cabbage mixes automatically, continuously and precisely. It is available in flexible design.
  • Capacity from 200 to 2,000 kg/h
  • Weighing belt
  • Special Inclined conveyor belt
Details

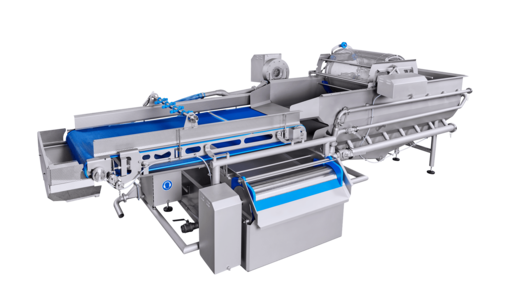

The washing machine HEWA 4000 from KRONEN for the effective, gentle and economic washing of cut and whole products (salad, vegetables, herbs, fruit etc.) up to 4 t/h.
Disinfection, Washing, Mixing
HEWA 4000 washing machine with vibration or belt outfeed
A universal washing machine optimized in terms of both hygiene and cleaning – for the continuous pre-washing, washing, disinfection and treatment of both cut and whole lettuce, vegetables, herbs and fruit, among others.
  • Capacity from 100 to 4,000 kg/h
  • Wet disinfection
Details
K650 drying system from KRONEN: large centrifuge system for products including salad (salad mixes, lamb’s lettuce, iceberg rucola etc.), herbs, spinach, cut vegetables (e.g. carrots and cabbage) as well as fruit and mushrooms
Drying
K650 drying system
By means of a large-volume centrifuge with a diameter of 650 mm, the fully automatic, continuously operating unit is used to dry cut lettuce and whole leaves as well as cut fruit and vegetables.
  • Capacity up to 2,800 kg/h
  • Continuous Loading type
Details
K850 drying system from KRONEN: large-scale centrifuge plant for up to 5 t/h – for products including salad (salad mixes, lamb’s lettuce, iceberg, rucola etc.), herbs, spinach, cut vegetables (e.g. carrots and cabbage) as well as fruit and mushrooms
Drying
K850 drying system
By means of a large-volume centrifuge with a diameter of 850 mm, the fully automatic, continuously operating unit is used to dry cut lettuce and whole leaves as well as cut fruit and vegetables. The system sets new standards in terms of hygiene.
  • Capacity up to 5,000 kg/h
  • Continuous Loading type
Details
FLEX L packaging machine for the continuous packing of salad, vegetables, fruit and other products in pillow bags (further bag shapes available as options).
Packaging
FLEX L packaging machine
The FLEX L is suitable for continuous packaging of free.flowing food and other products, integrated into production lines. Bags with a maximum width of 350 mm are produced at a high working speed.
  • Capacity up to 50 bags/minute
  • Bag size: Width 75–350 mm
Details
The multifunction machine GS 10 from KRONEN for the precise and gentle cutting of a wide range of different foods such as salad, vegetables, fruit, herbs, meat, cooked meats, fish, vegan substitute products and baked goods in very large quantities.
Cutting
GS 20 belt cutting machine
Versatile, efficient and proven: the multifunctional machine for the precise and gentle cutting of a wide variety of food products including lettuce, vegetables and fruit, in very large quantities
  • Capacity up to 4,000 kg/h
  • Loading: Automatic
Details
MULTICORER grid cutter for coring and cutting salad, cabbage, bell peppers
Preparing, Cutting
Multicorer (4B/2B)
The Multicorer for the automated coring of large quantities of lettuce, cabbage and other products with a maximum diameter of 240 mm considerably reduces the personnel requirement in preparation.
  • Capacity up to 2,400 pieces/h
  • Loading: Semi-automatic
Details

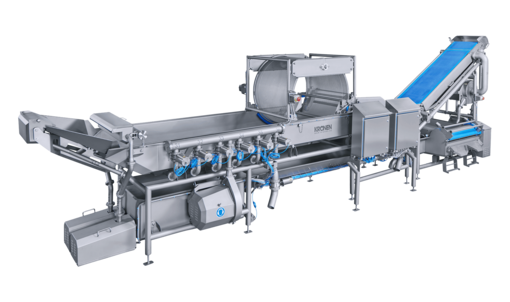

Prewashing machine GEWA AF from KRONEN: prewash floating, particularly leafy products (salad and vegetables) without mechanical stress and absorb production peaks – up to 5 t/h
