Peeling, Preparing

Mango peeling and destoning machine 20

The mango peeling and destoning machine 20 peels, pits and halves up to 20 mangoes per minute in an automated process. The mango halves, peeled just as gently as if by hand, can then be further processed.

up to 20 fruit/minute Max. capacity

Get information/offer

Mango peeling machine for the pitting, peeling and cutting of mangoes into fillets

PDF Preview

Your benefits

Gentle peeling of whole mangoes as if by hand
Destoning, peeling and halving in one cycle
Machine operation with a low personnel requirement
Efficient processing of up to 20 mangoes per minute

Product groups

Portrait

Gentle peeling, destoning and halving of mangoes as if by hand

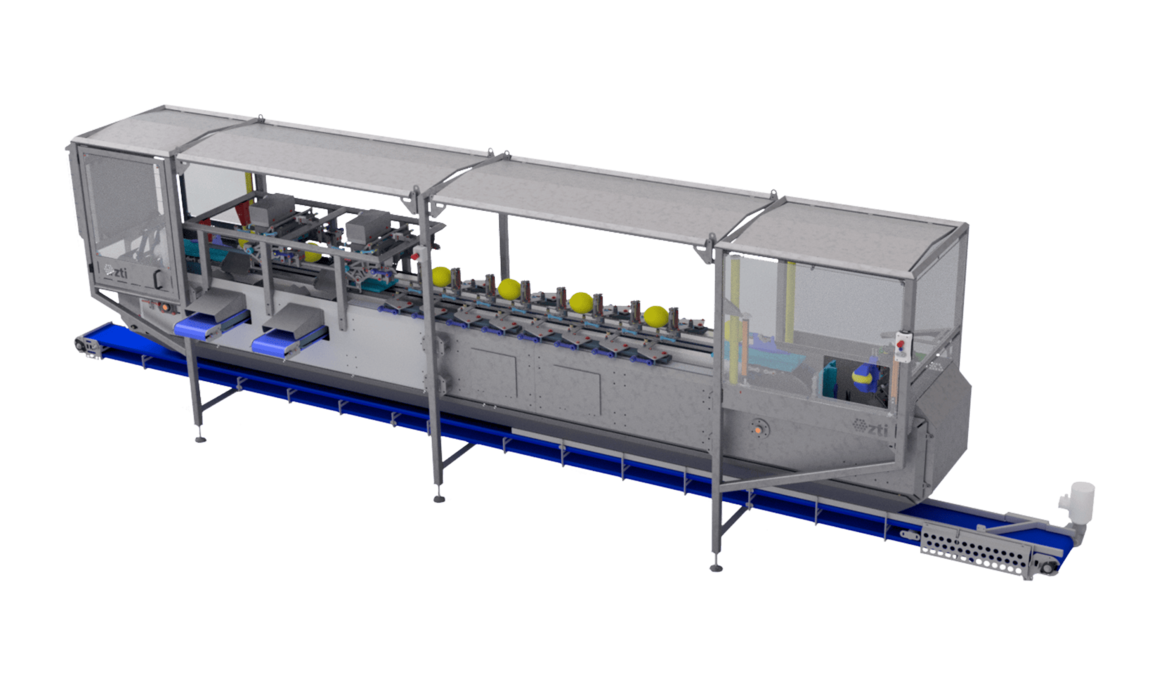

Whole mangoes are peeled, pitted and halved in one cycle using the mango peeling and destoning machine 20. The peeled mango halves can then be further processed and cut into cubes or strips, for example. With a capacity of up to 20 fruits per minute and low personnel requirements, the machine efficiently processes high volumes.

The fruit are placed in the fruit pockets in an arranged manner. During the peeling process, the fruit is held in position by the stone, thus enabling particularly gentle processing and a peeling result as if by hand. The peeled mango then passes through the cutting stations, where the flesh is cut off the stone on both sides. The mango fillets are then discharged sideways by means of product chutes. The peel and stones are discharged via the waste belt.

Show more Show less

Get information/offer

Mango halves that have been peeled and pitted with the mango peeler 20. — The mango peeling and pitting machine 20 processes whole fruits into peeled and pitted mango halves.

The mango peeling and pitting machine 20 processes whole mangoes. — The mango peeling and pitting machine 20 processes up to 20 whole mangoes per minute.

Mango peeling and destoning machine 20

The Mango Peeler-de-Cheeker 20 processes 20 mangoes per minute. The mangoes are placed into the machine manually and that is about all the handwork needed. Peeling and destoning are done fully automatically via a step-by-step method. This means that the mango moves one position further in the machine for every next operation, resulting in beautiful, smoothly peeled mango cheeks.

Show more Show less

Benefits

Gentle processing for an optimal peeling result

Thanks to the fixation of the fruits in the product holders on the stone of the mango, the eight-step peeling system with its especially adapted peeling knives, and the suspension of the blades, the peeling result achieved is just as good as hand-peeled. As a result, even ripe and soft fruits can be peeled and pitted optimally without damaging the sensitive pulp.

Show more Show less

Peeling, destoning and halving in one cycle

All three processing steps take place successively at different stations when passing through the mango peeling and destoning machine 20. The result: peeled and pitted mango halves.

Show more Show less

Synchronized cycle for easy positioning of the fruit

The synchronized cycle ensures easy positioning of the fruit. After manual insertion of the fruit into the fruit pockets, the mangoes are automatically placed onto the fruit holders.

Show more Show less

High performance with low personnel requirements

The mango peeling and destoning machine 20 is loaded by only one person. After processing, only one or two people are required to check the processing result. This means that large quantities can be processed with low personnel requirements.

Show more Show less

Waste discharge belt

The waste discharge belt transports the peel and stones out of the mango peeling machine 20.

Show more Show less

Fruit holder set for processing fruits with a smaller stone

The fruit holder replacement set enables a significant increase in the yield of fruits with smaller or flatter stones. To adapt the machine to different fruits, it is possible to switch between the standard fruit holder set for 25 mm and the set for 22 mm.

Show more Show less

Product discharge conveyor

For efficient processing, a discharge conveyor can be used to transport the mango halves directly for further processing.

Show more Show less

up to 20 fruit/minute

Capacity

Knife-peeling

The capacity depends on factors such as the product.

Electrical power	Power	2.2 kW
	Voltage	400 V
	Frequency	50 Hz
Dimensions	LxWxH	6200 x 1350 x 2100 mm
Dimensions	Weight	1600 kg
Miscellaneous	Diameter of raw product	max. 140 mm
	Cycles per hour	1200
	Height of raw product	115–160 mm

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
