CAP 350 cabbage cutting machine

The CAP 350 cabbage cutting machine is suitable for efficiently processing large quantities of whole cabbages (e.g. white and red cabbage) up to a diameter of 350 mm.

5,000 kg/h Max. capacity

Get information/offer

The cabbage cutting machine CAP 350 from KRONEN for cutting large quantities of white and red cabbage.

PDF Preview

Your benefits

Processing of whole cabbages up to a diameter of 350 mm
High performance with outstanding cutting results
Easy cleaning due to good accessibility and removable components

Product groups

Portrait

Perfect cutting results when processing whole cabbages

The CAP 350 cabbage cutting machine is ideal for cutting large quantities of whole cabbages. Red cabbage and white cabbage can be processed up to a diameter of 350 mm with optimal cutting quality. The machine can be filled continuously using its large feeding hopper.

The CAP 350 is a further development of the CAP 68 cabbage cutting machine. It is able to process particularly large heads of cabbage and therefore offers an increased processing capacity. The cutting machine features an open, user-friendly design that has been optimized in terms of hygiene and cleaning and places a strong focus on operational safety.

Cutting disks are available as standard in the following cutting thicknesses: 1.3 mm, 1.8 mm, 2.3 mm and 2.8 mm. Other cutting thicknesses can be offered on request.

Note: The video shows the KSB-2 and the CAP 68, the predecessor of the CAP 350.

Show more Show less

Get information/offer

The cabbage cutting machine CAP 68 from KRONEN cuts large quantities of red and white cabbage in best cutting quality.

CAP 350 cabbage cutting machine for cutting cabbage into strips

The CAP 350 cabbage cutting machine is ideal for cutting large quantities of whole cabbages. Red cabbage and white cabbage can be processed up to a diameter of 350 mm with optimal cutting quality. It can process large calibers without having to cut the cabbage heads in half.

Show more Show less

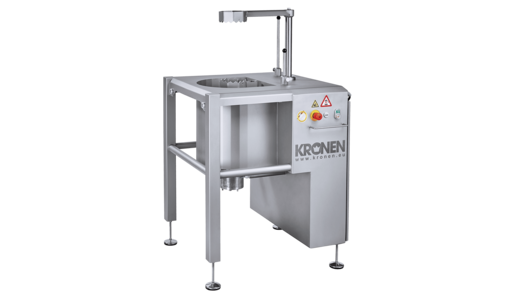

Cabbage processing with KSB-2 cabbage corer and CAP 68 cabbage cutting machine

With the KSB-2 cabbage corer up to 600 cabbages per hour can be cored. The cored cabbages can be optimally processed with the CAP 68 cabbage cutting machine.

Show more Show less

Benefits

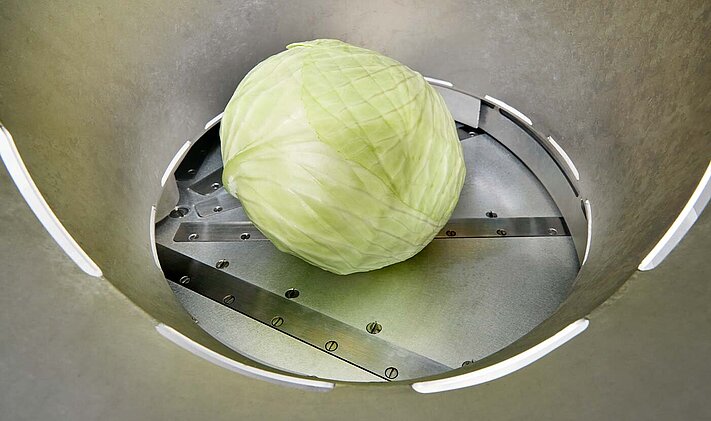

Breites Zuführrohr der CAP 350 zum Befüllen mit Kohl

Optimal product intake

The wide infeed tube ensures continuous filling. The angled blades on the cutting disk and the specially shaped product infeed ensure optimal intake of the cabbage head, thus largely preventing any possible uncontrolled movement of the cabbages.
Shred shorteners can be used to cut strips according to the specific cutting length required by the customer.

Show more Show less

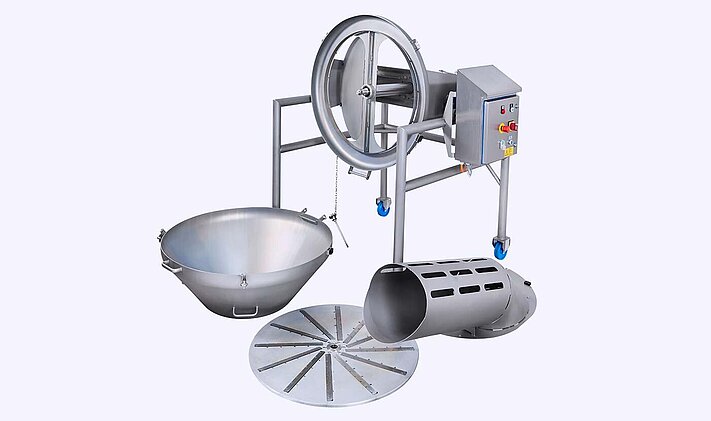

Reinigung der Krautschneidemaschine CAP 350

Cleaning and maximum hygiene

Functions that enable the machine hatch to be folded down for the easy removal of components ensure optimal hygiene and easy cleaning of the machine. The filler tube, cutting disk and discharge funnel can all be removed for quick and thorough cleaning.

Show more Show less

Large selection of cutting disks

Cutting thicknesses of 1.3 mm, 1.8 mm, 2.3 mm and 2.8 mm are available as standard. Other cutting thicknesses can be offered on request. In addition, shred shorteners can be used for all cutting disks, allowing the cabbage to be cut into strips according to the customer's specific cutting length.

Show more Show less

1,000 - 5,000 kg/h

Capacity

Semi-automatic

The capacity depends on factors such as the product.

Electrical power	Power	2.2 kW
	Voltage	3–400 V N/PE
	Frequency	50 Hz
Dimensions	LxWxH	1570 x 1550 x 1685 mm
	Weight	281 kg
	Infeed/placement height	1250 mm
	Outfeed/delivery height	540 mm
Miscellaneous	Diameter of raw product	max. 350 mm
Miscellaneous	Cutting thickness	1.3 mm, 1.8 mm, 2.3 mm and 2.8 mm

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
